Project #1950

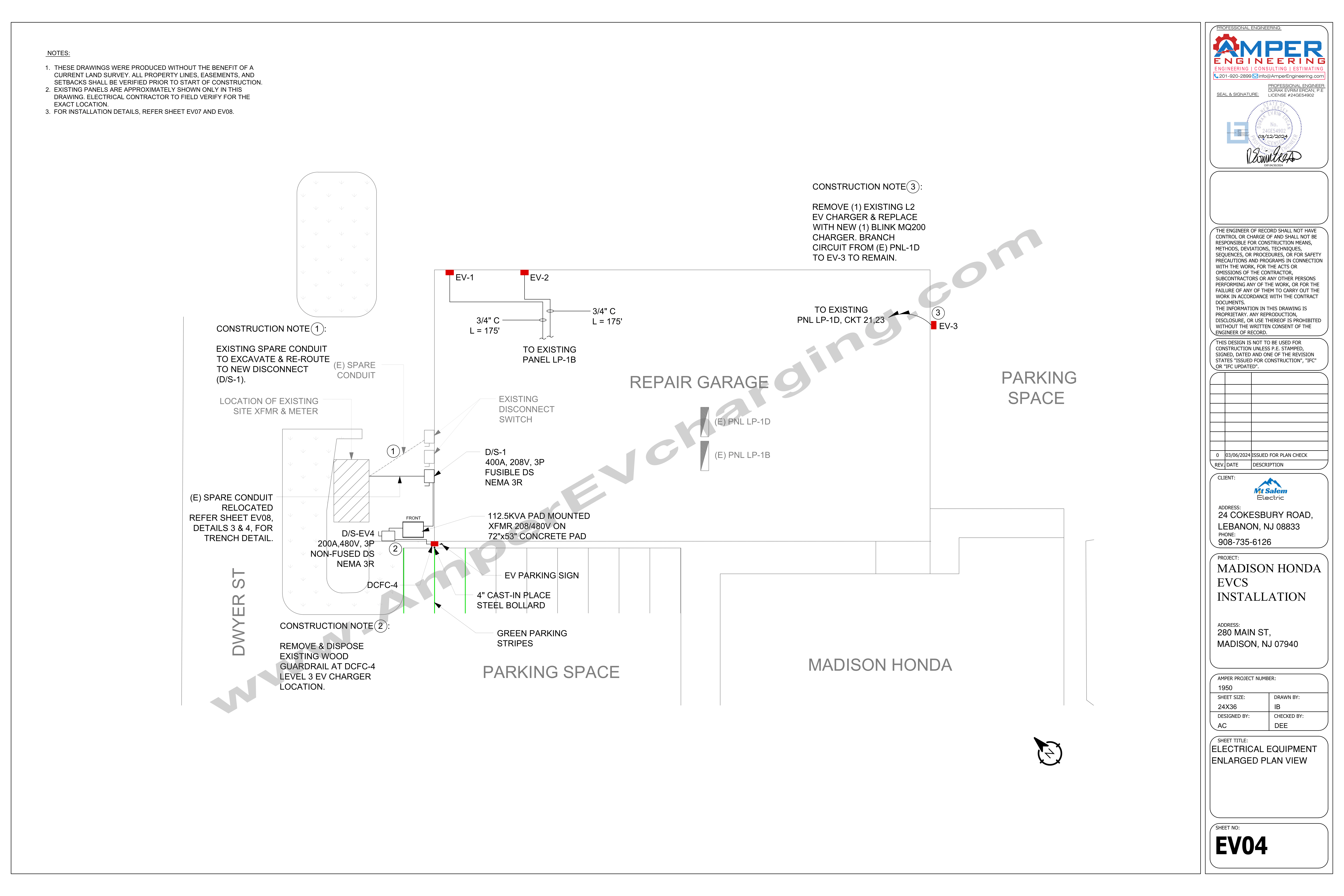

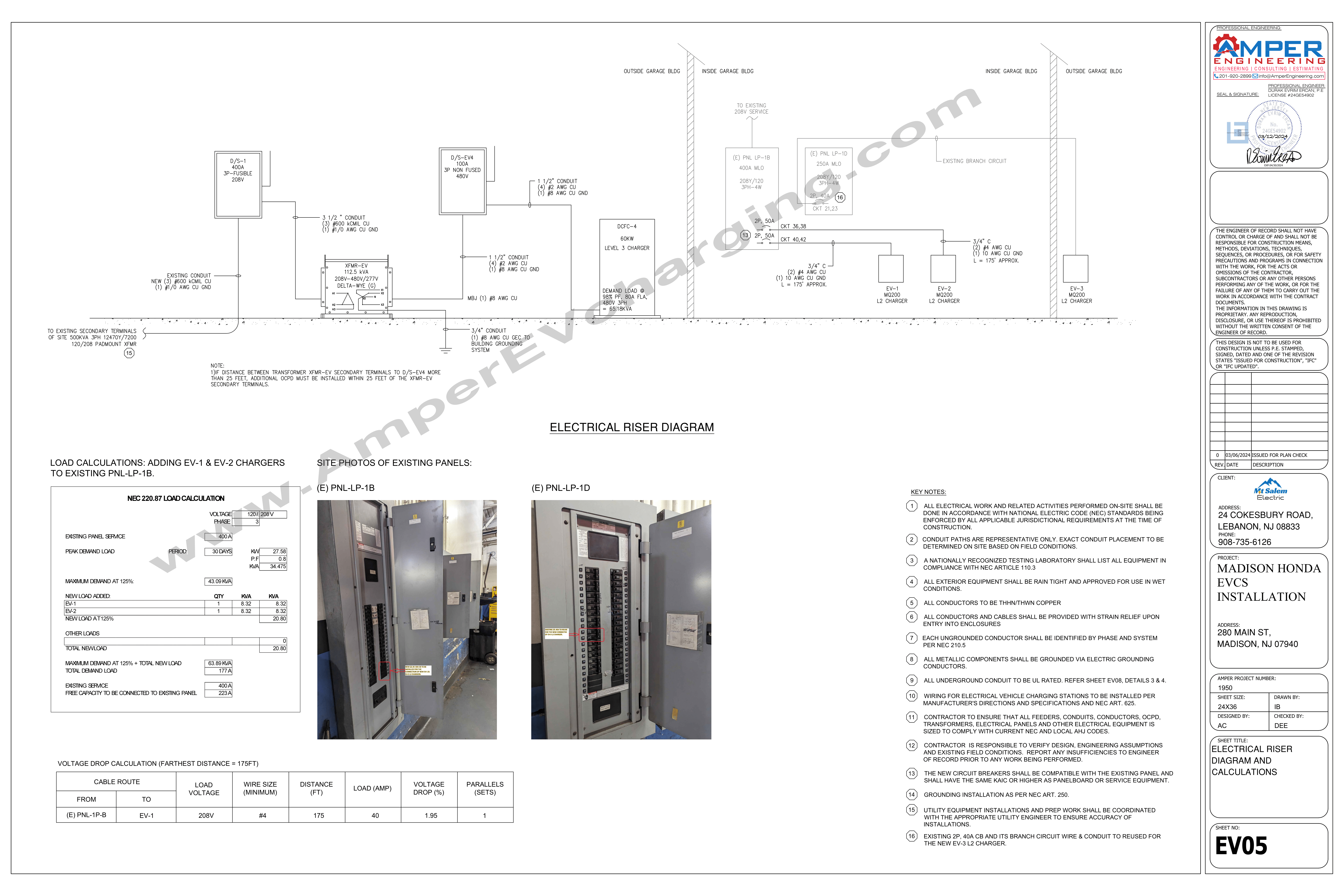

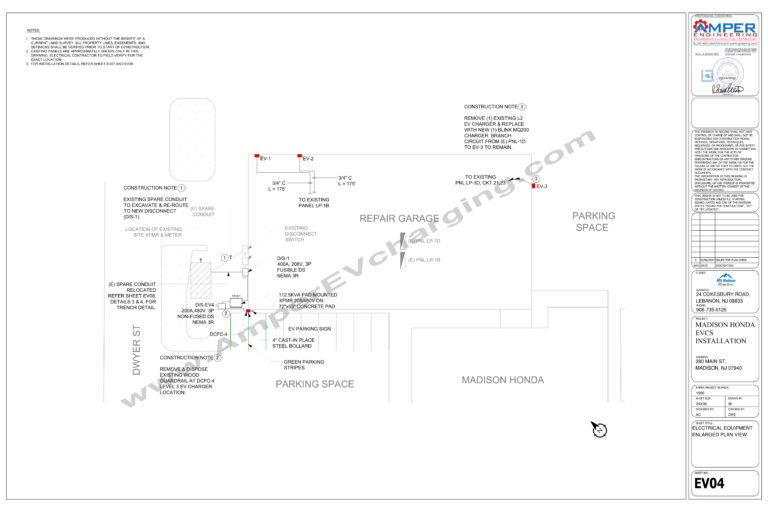

This is Level 2 & Level 3 EVCS project. It consists of (3) new level 2 electric vehicle charger installed outside the repair garage prep area and (1) 60kw DCFC level 3 charger in the building front parking. AmperEVcharging will review the distribution network operator, the necessary electrical demand, power source verification and from existing building electric room or new transformers. The design is to bring power to the (3) new level 2 charger fed from existing panel and (1) DCFC level 3 charger fed from existing utility xfmr. Install (2) 50A 2P breaker in existing panel and run across repair garage ceiling to each level 2 evcs in garage prep area. For DCFC level 3, new 400A, 208V, 3ph utility service from secondary side of the existing xfmr, to a 400A, 208V fused disconnect, to (1) 112.5kva 208/480V step up xfmr, to a 200A 480V non-fused disconnect. After completing the engineering design, AmperEVcharging will PE signed & sealed and issued for approval to obtain local AHJ permit.
