Project #1583

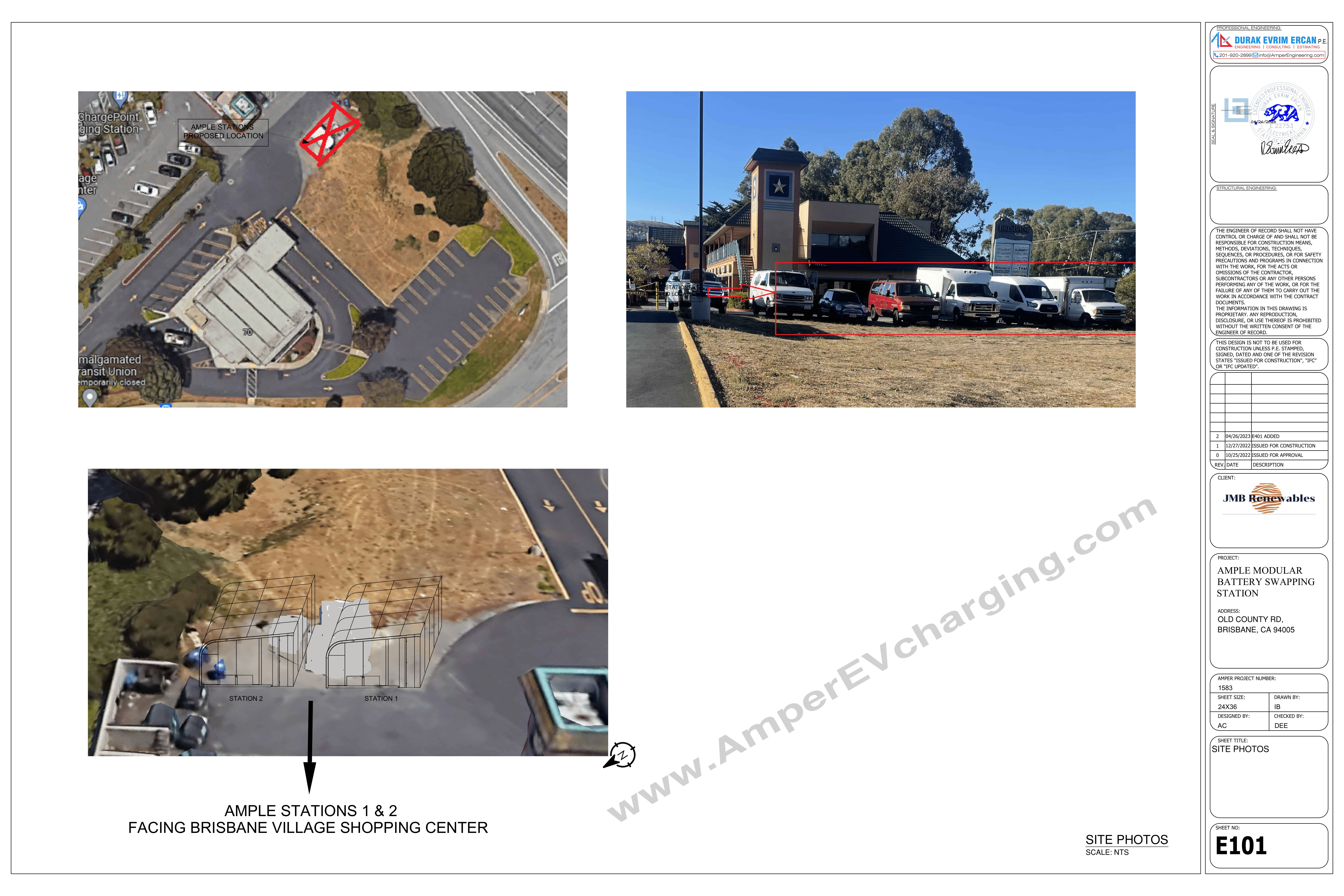

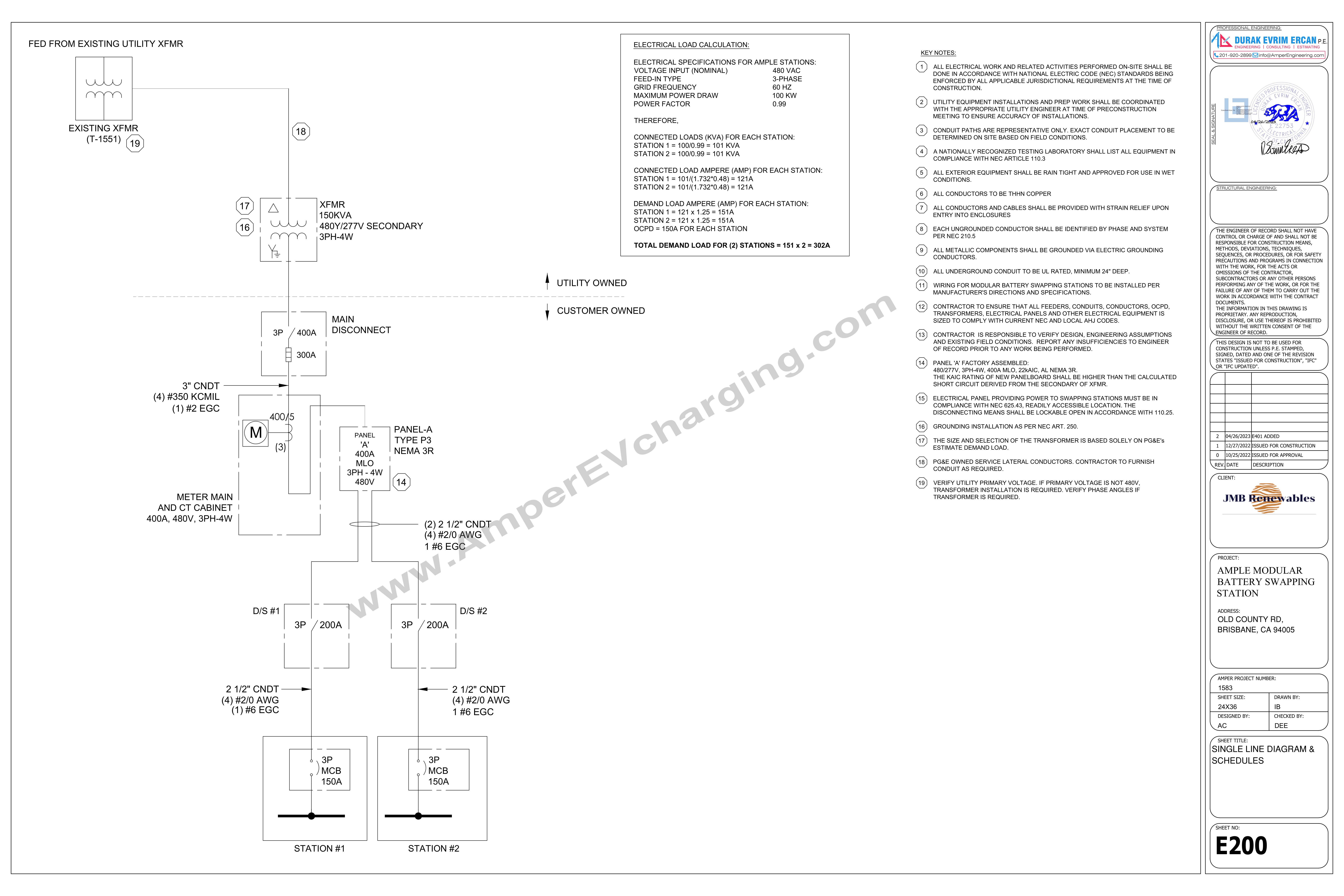

This is a modular battery swapping station project. It consists of (2)modular battery swapping station to be installed at a vacant parking space. AmperEVcharging will review the distribution network operator, the necessary electrical demand, power source verification and from existing building electric room or new transformers. The design is to bring power to the (2) stations fed from an existing utility xfmr. The power source will come from secondary side of existing xfmr pad mounted to new stepdown 150kva xfmr pad mounted, 480v/277v, 3ph, 4w. From new xfmr will feed to main fused disconnect and from disconnect to new meter main & ct cabinet to 400A panelboard, then to stations #1 & #2. AmperEVcharging will PE signed & sealed and issued for approval to obtain local AHJ permit.
