Project #1559

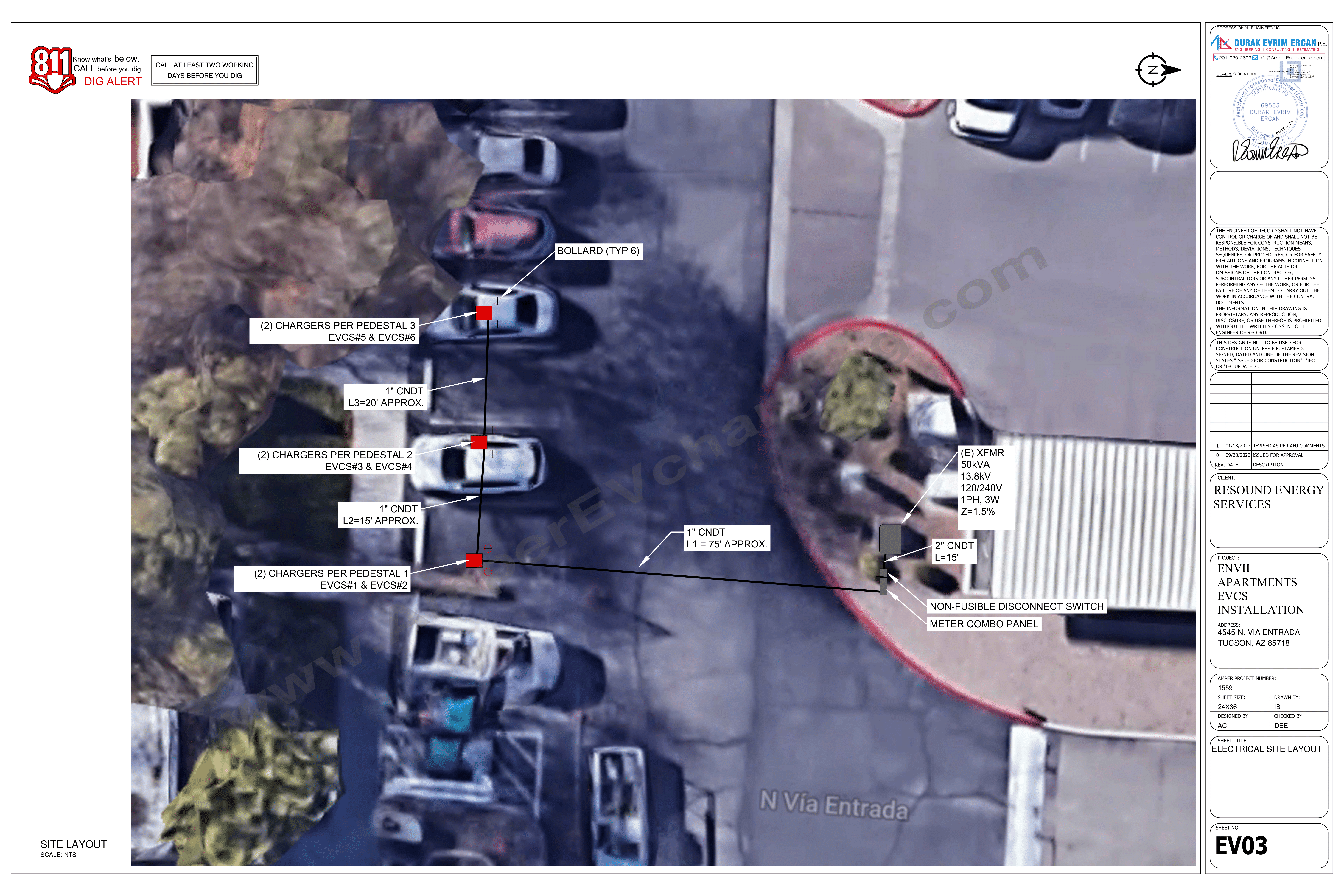

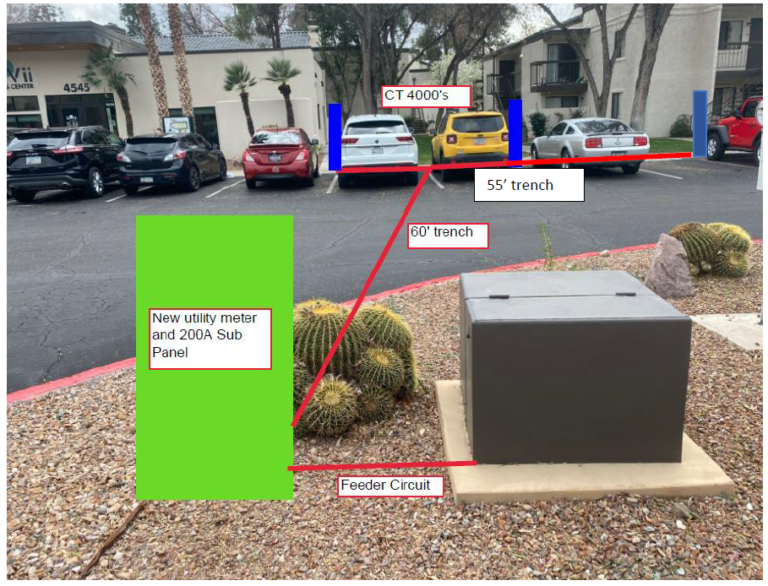

This is an AC Level 2 EVCS project. It consists of (3) CT400 level 2 dual port electric vehicle charger stations. AmperEVcharging will review the distribution network operator, the necessary electrical demand, power source verification and from existing building electric room or new transformers. The design is to bring power to the EVCS fed from an existing utility transformer. From secondary side of utility transformer, will feed to new non-fused disconnect, meter combo panel then to the (3) pedestal dual port electric vehicle charging stations. After completing the engineering design, AmperEVcharging will PE signed & sealed and issued for approval to obtain local AHJ permit.
